Lecture 17: Dijkstra and Minimum Spanning Trees

COSC 311 Algorithms, Fall 2022

$ \def\compare{ {\mathrm{compare}} } \def\swap{ {\mathrm{swap}} } \def\sort{ {\mathrm{sort}} } \def\insert{ {\mathrm{insert}} } \def\true{ {\mathrm{true}} } \def\false{ {\mathrm{false}} } \def\BubbleSort{ {\mathrm{BubbleSort}} } \def\SelectionSort{ {\mathrm{SelectionSort}} } \def\Merge{ {\mathrm{Merge}} } \def\MergeSort{ {\mathrm{MergeSort}} } \def\QuickSort{ {\mathrm{QuickSort}} } \def\Split{ {\mathrm{Split}} } \def\Multiply{ {\mathrm{Multiply}} } \def\Add{ {\mathrm{Add}} } \def\cur{ {\mathrm{cur}} } \def\gets{ {\leftarrow} } $

Overview

  1. Dijkstra’s Algorithm Correctness
  2. Implementing Dijkstra
  3. Minimum Spanning Trees

Last Time: Weighted SSSP

Input.

  • a weighted Graph $G = (V, E)$, edge weights $w$
  • an initial vertex $u \in V$
  • each vertex $v \in V$ has associated adjacency list
    • list of $v$’s neighbors
    • includes weight of edge from $v$ to each neighbor

Output.

  • A map $d: V \to \mathbf{R}$ such that $d[v] = d_w(u, v)$ is the graph distance from $u$ to $v$

    • $d[v] = \infty$ indicates no path from $u$ to $v$

Dijkstra’s Algorithm

  1. Initialize $d[u] = 0$ and $d[v] = \infty$ for all $v \neq u$
  2. Maintain set $S$ of finalized nodes, initially empty
  3. Process nodes. While $S \neq V$ do:
    • find node $v$ in $V - S$ with minimal $d[v]$
    • add $v$ to $S$
    • for each neighbor $x$ of $v$
      • update $d[x] \gets \min (d[x], d[v] + w(v, x))$

Correctness

  1. Initialize $d[u] \gets 0$ and $d[v] \gets \infty$ for all $v \neq u$
  2. Maintain set $S$ of finalized nodes, initially empty
  3. Process nodes: while $S \neq V$
    • find node $v$ in $V - S$ with minimal $d[v]$
    • add $v$ to $S$
    • for each neighbor $x$ of $v$
      • update $d[x] \gets \min (d[x], d[v] + w(v, x))$

Claim. For every vertex $v \in S$, $d[v]$ stores the correct (weighted) distance $d_w(u, v)$.

Proof of Claim

Claim. For every vertex $v \in S$, $d[v]$ stores the correct (weighted) distance $d_w(u, v)$.

Proof. Use induction on size of $S$. Set $k = $ size of $S$.

Base case $k = 1$. Only $u$ is added to $S$. Set $d[u] \gets 0$, which is correct answer.

Inductive Step I

Inductive hypothesis. When $S$ contains $k$ elements, $d[v]$ is correct for all vertices $v \in S$.

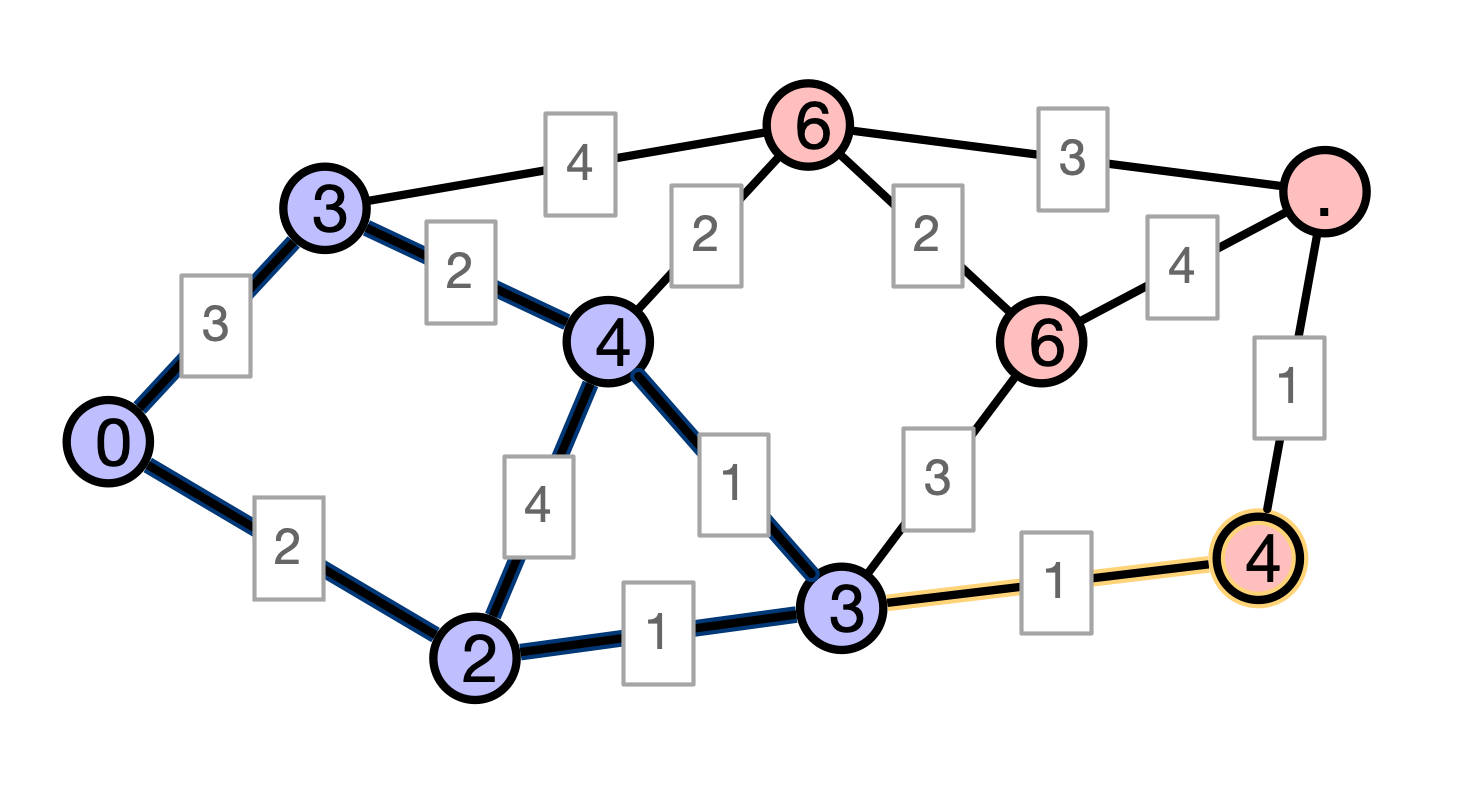

Consider next iteration of outer loop:

  • $x$ has $d[x] = \min_{v \in S} (d[v] + w(v, x))$

Inductive Step II

Must show: $d[x] = d_w(u, x)$; argue by contradiction

  1. suppose $d[x] \neq d_w(u, x)$
  2. observe: there is a path from $u$ to $x$ of length $d[x]$
  3. $\implies d_w(u, x) < d[x]$
  4. $\implies$ there is a path $P$ from $u$ to $x$ of length $\ell < d[x]$

Shorter Path Illustration

Inductive Step III

Must show: $d[x] = d_w(u, x)$; argue by contradiction

  1. suppose $d[x] \neq d_w(u, x)$
  2. observe: there is a path from $u$ to $x$ of length $d[x]$
  3. $\implies d_w(u, x) < d[x]$
  4. $\implies$ there is a path $P$ from $u$ to $x$ of length $\ell < d[x]$
  5. $P$ must leave $S$ at some point $y$
  6. by definition of $x$, any path from $u$ to $y$ must be longer than $d[x]$
  7. $\implies w(P) \geq d[x]$, which contradicts $4$

Conclusion. $d[x] = d_w(u, x)$, as claimed.

Dijkstra Running Time?

$G$ has $n$ vertices, $m$ edges

Question. How many operations performed?

  1. Initialize $d[u] \gets 0$ and $d[v] \gets \infty$ for all $v \neq u$
  2. Maintain set $S$ of finalized nodes, initially empty
  3. Process nodes: while $S \neq V$
    • find node $v$ in $V - S$ with minimal $d[v]$
    • add $v$ to $S$
    • for each neighbor $x$ of $v$
      • update $d[x] \gets \min (d[x], d[v] + w(v, x))$

For Simplicity

Assume. Vertices are $1, 2, \ldots, n$

  • $d$ is an array with $d[v] = $ distance from $u$ to $v$
  • $\mathrm{final}$ is a Boolean array with $\mathrm{final}[v] = \mathrm{true}$ if $v$’s distance is finalized
  • keep track of number of finalized vertices
    • we’re done when $n$ vertices are finalized

Simple Implementation

For step

  • find node $v$ in $V - S$ with minimal $d[v]$

use linear search

Question 1. What is running time of finding min?

Question 2. What is overall running time of Dijkstra?

Faster Implementation?

Since we need to access $v$ with minimum $d[v]$, store non-finalized vertices in a priority queue

  • store elements with associated priorities
  • add element with given priority
  • remove element with smallest priority

Heap priority queue implementation

  • supports these operations with running time $O(\log n)$

For Dijkstra:

  • Store un-finalized vertices in priority queue
  • priority of $v$ is $d[v]$

One Sublety, Two Solutions

Issue. Dijkstra decreases priority of vertices

Solution 1. Store duplicate vertices with each new distance

  • will still find vertex $v$ with smallest $d[v]$
  • if finalized vertex is returned, ignore it
  • requires priority queue of size $m$ rather than $n$

Solution 2. Use more sophisticated priority queue that supports “decrease priority” operation

  • can be implemented in $O(\log n)$ time

Conclusion

Dijkstra performs

  • $n$ removals of vertices when they are finalized
  • $2m$ distance updates

With efficient priority queues, these operations can each be performed in $O(\log n)$ time so…

Result. Dijkstra’s algorithm can be implemented to run in time $O(m \log n)$.

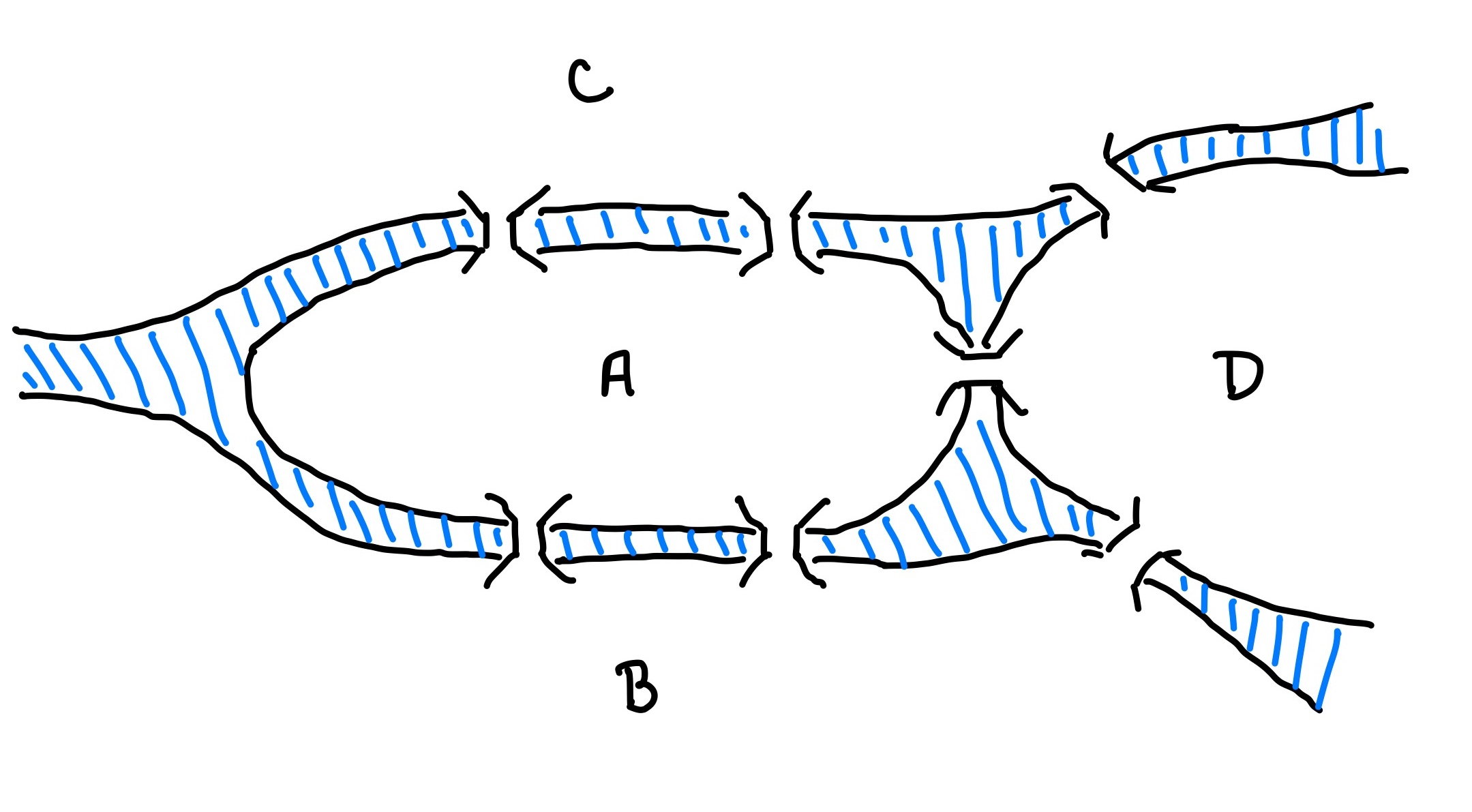

DPW in Königsberg

Winter is coming to Königsberg!

  • Must prepare the bridges for ice
  • Each bridge has an associated cost to de-ice
  • Königsberg doesn’t have the budget to de-ice all bridges
  • For public safety, must ensure that all landmasses are reachable from each other

Question. How to find the cheapest set of bridges to de-ice that maintain connectivity?


Graph Problem

Input:

  • a weighted graph $G = (V, E)$ with edge weights $w$

Output:

  • a set $F$ of edges in $E$ such that

    1. $(V, F)$ is connected
    2. sum of weights of edges in $F$ is minimal among all connected sub-graphs of $G$

The graph $T = (V, F)$ is called a minimum spanning tree of $G$

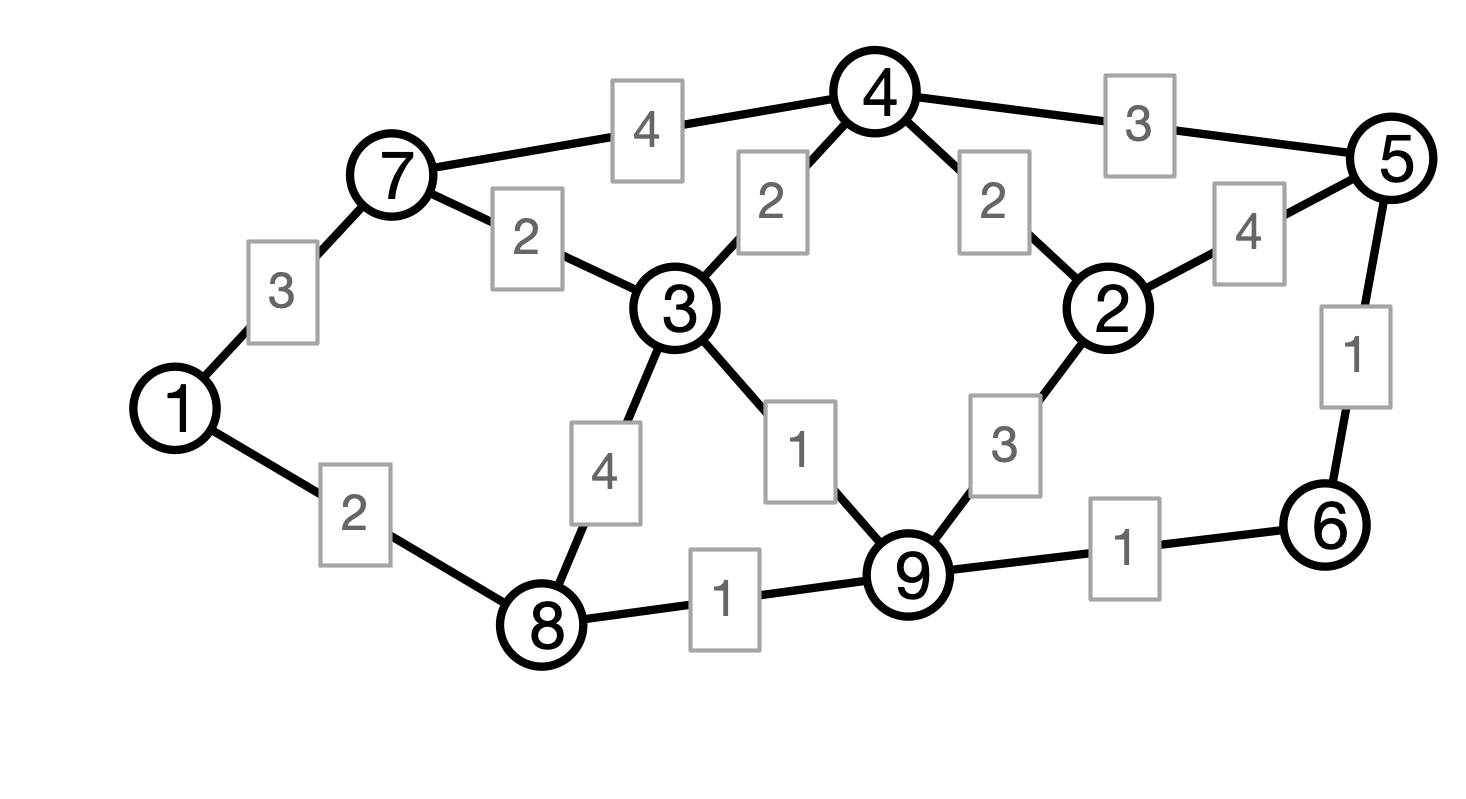

Example

Next Time

Greedy algorithms for the minimum spanning tree problem!
