Project 01: Conway’s Game of Life

Outline

  1. Program Introduction
  2. Simulation by Hand
  3. Program Usage
  4. Get Started!

Conway’s Game of Life

  • 0 player game played on a grid of squares
  • Each cell (square) can be alive or dead
  • Next step/generation determined by current configuration
    • each cell has 8 neighbors
    • whether a cell is dead or alive in next generation depends on number of alive neighbors

Your Task

  • Complete implementation of Conway’s Game of Life
  • Experiment and find “interesting” initial configurations

The Challenges

  1. Understand and work with a larger program
    • given a lot of code, much of it unfamiliar
    • understand structure enough to work with the code
  2. Implement Life
  3. Use your program to experiment!

The Rules

“Game” played on square grid of cells

  • each cell has 8 neighbors
  • cells can be in one of two states: alive or dead
  • system evolves in rounds

Each Round

State of each cell in the next round is determined state in this round:

  1. If cell is alive and 2 or 3 live neighbors, it stays alive
  2. If cell is dead but has 3 live neighbors, it becomes alive
  3. Otherwise, cell is dead in next round

Test Your Understanding

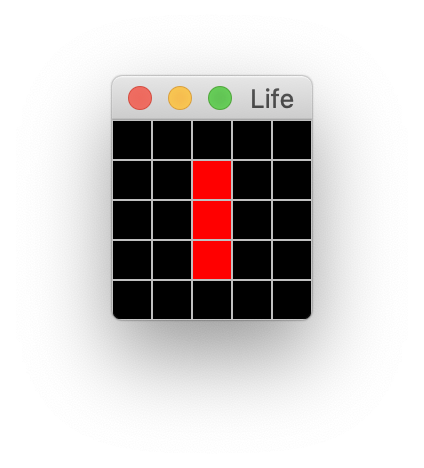

Simple Examples I (Red = Alive)

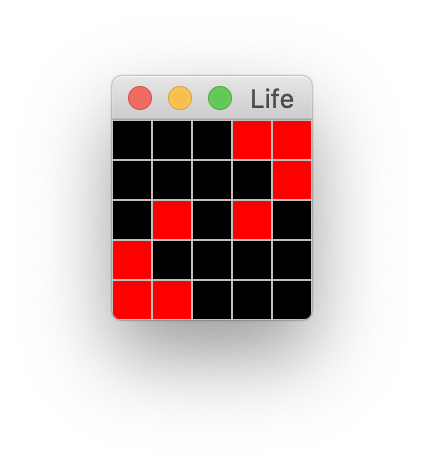

Simple Examples II (Red = Alive)

Using the Program

  1. Compile and run from terminal
  2. Terminal usage:
java Life <init file> <no. of generations> <interface: Graphic or Text>

Testing Examples

Wild Behavior

Why do People Like CGoL?

  1. Simple rules, unexpectedly complex behavior
  2. Behavior is provably unpredictable
    • given two configurations there is no algorithm that determines whether a game started from the first config eventually reaches the second
  3. Can “program” certain behavior
    • Life can simulate an arbitrary computer program

Initialization File Structure

4 4     // dimensions of board (square)
1 1     // coordinates of alive cells
1 2
2 1
2 2

Get Started!
